12000W Hybrid Inverter AC Output 120V Max PV Input 500V Can Be Parallel Split phase 12000VA Single phase 7200VA
12000W Hybrid Inverter AC Output 120V Max PV Input 500V Can Be Parallel Split phase 12000VA Single phase 7200VA
12000W Hybrid Inverter AC Output 120V Max PV Input 500V Can Be Parallel Split phase 12000VA Single phase 7200VA
12000W Hybrid Inverter AC Output 120V Max PV Input 500V Can Be Parallel Split phase 12000VA Single phase 7200VA
12000W Hybrid Inverter AC Output 120V Max PV Input 500V Can Be Parallel Split phase 12000VA Single phase 7200VA
Sale

12000W Hybrid Inverter AC Output 120V Max PV Input 500V Can Be Parallel Split phase 12000VA Single phase 7200VA

Empireum WDWM

$7,271.99 $3,589.95 51% OFF

This special price ends in : This price of this item will revert back to $7,271.99 at the end of this countdown

Tags :
Color :
Solar 9KW and 9KW in
With Limiter
With Limiter WIFI
Ships From

Low Stock : Left

Ask about this product

This special price ends in :


Product Features：

1、It has the function of sectional charge and discharge (can set the time period for battery charging or discharging).
2、Allowing access of lead-acid battery and lithium battery.
3、Anti feed-in, self-consumption function (can be hybrid power supply from solar, battery and grid).
4、It can be used without battery. Solar and utility grid can power loads at the same time.
5、With dual activation function of lithium battery. It can be triggered by any power supply of the
mains or solar (when the li-ion battery was dormant).
6、Power saving mode available to reduce no-load loss.
7、Available in four charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
8、Two output modes: mains bypass and inverter output; Uninterrupted power supply.
9 、 Complete protections, including over voltage and under voltage protection, overload protection, reverse protection, etc. 360° all-round protection with a number of protection functions.

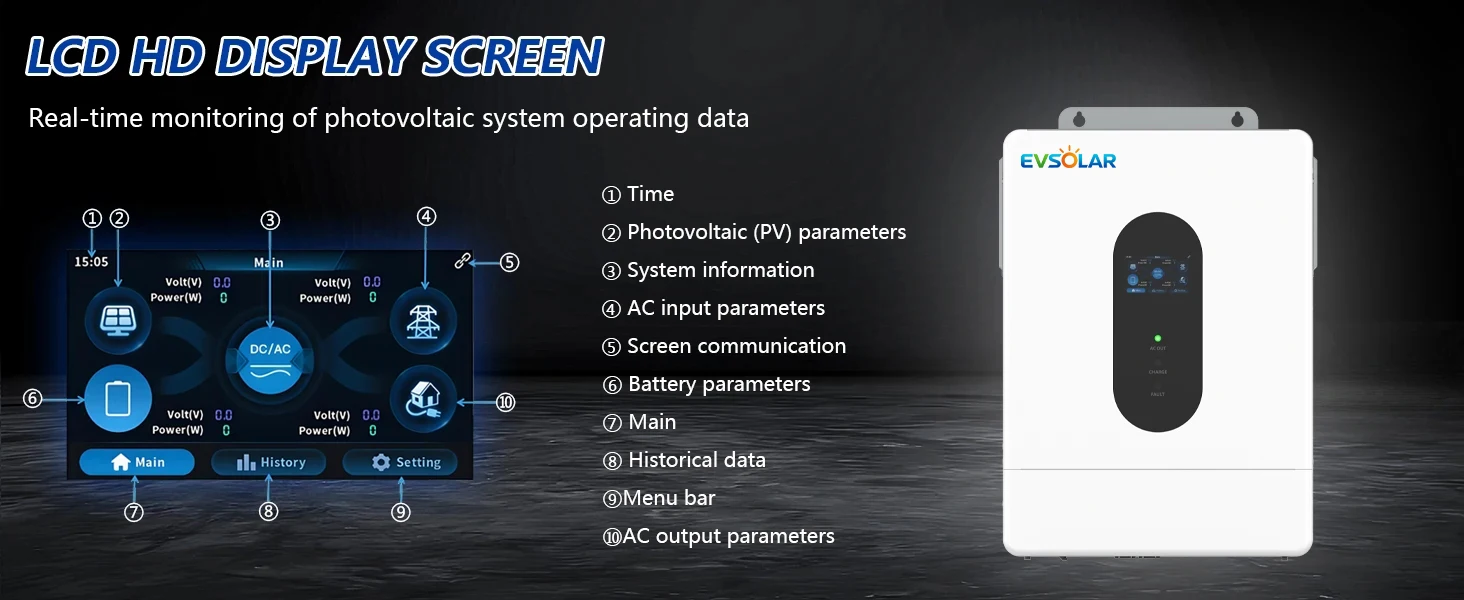

10、 With touch resistance LCD screen dynamic flow diagram design, easy to understand the system data and operation status.

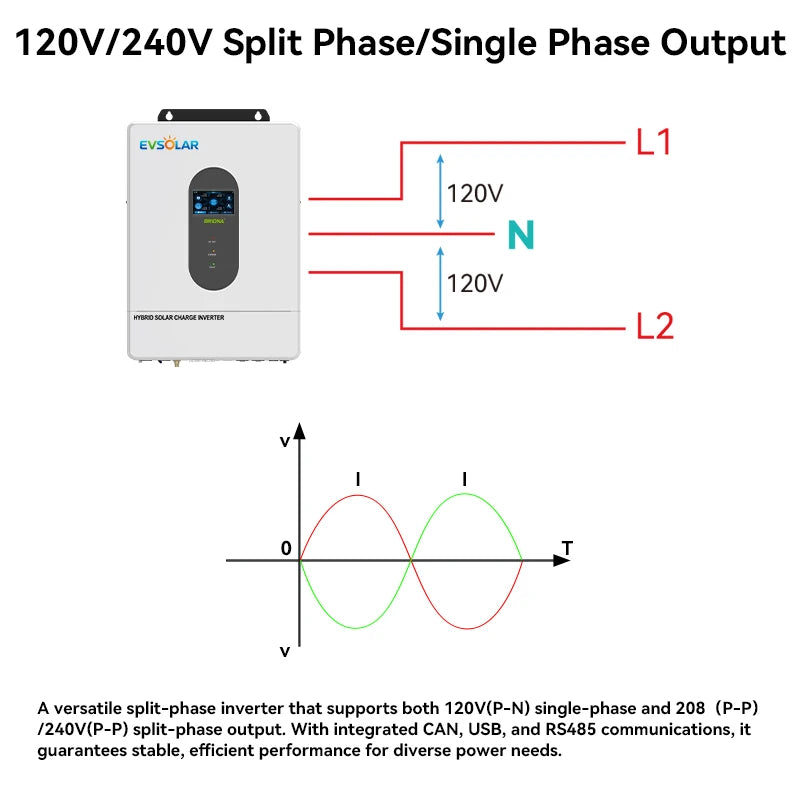

11、Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave; support split-phase and single-phase pure sine wave output; Supports five different voltage levels of 100Vac, 105Vac, 110Vac,120Vac ,127Vac per phase.
12、Supports two independent MPPTs, advanced MPPT technology with a tracking efficiency of 99.9%.
13、Intelligent variable speed fan to efficiently dissipate heat and extend system life.
14、Diverse human-computer interaction: support CAN, USB, WiFi and RS485 communication, local and remote power on or off, dry contact control.
15、Can be extended: external CT for whole house energy anti feed-in and self-consumption.
Product Produce:
1、PV String: convert light energy into DC power, and charge the battery through the inverter, or directly invert into AC power to drive the load.
2、Mains or generator: connected at the AC input, to power the load while charging the battery. If the mains or generator is not connected, the system can also operate normally, and the load is powered by the battery and PV module.
3、Battery: According to the energy storage and energy release function of the system requirements. Support lithium battery and lead acid battery (set setup).
4、Household load: allow connection of various household and office loads, including refrigerators, lamps, TVs, fans and air conditioners.
5、Hybrid solar charge inverter: the energy conversion unit of the whole system.
6、WiFi or GPRS: can monitor system permissions remotely.
7、CT:It is used to detect current.(Two CT's were placed on two fire lines，CT arrows point to the inverter).

Product Parameters:


Models

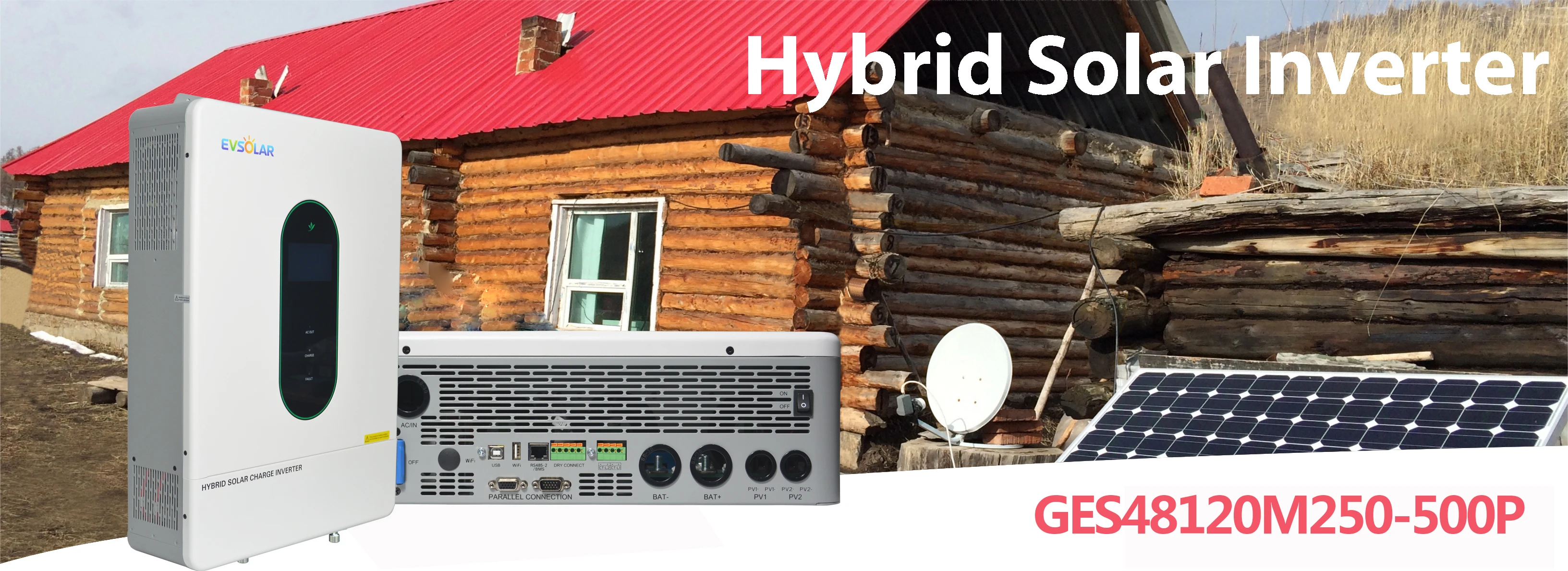

GES48120M250-500P

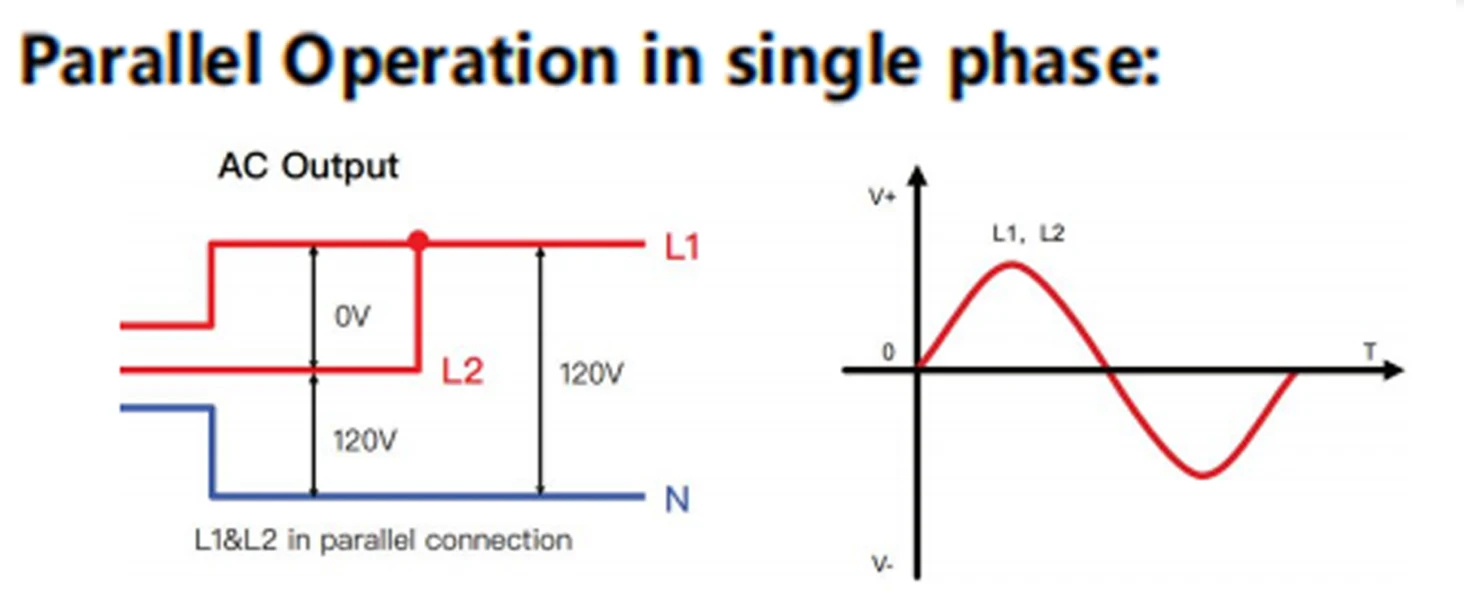

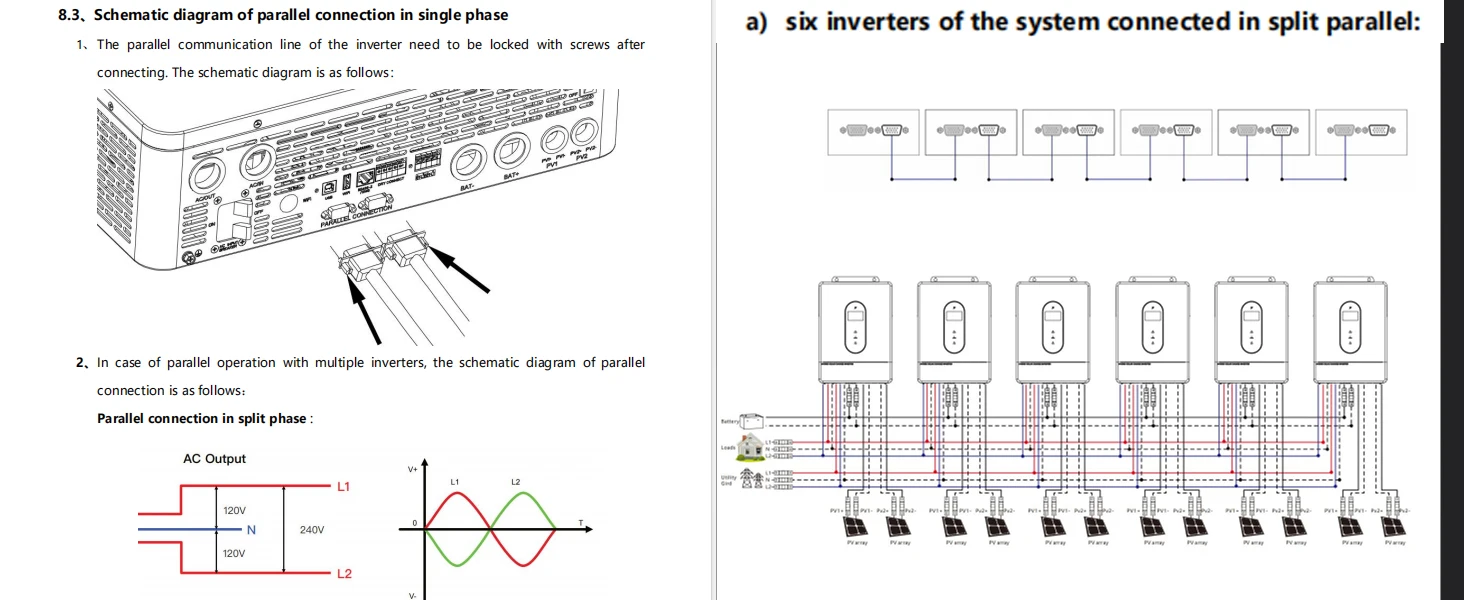

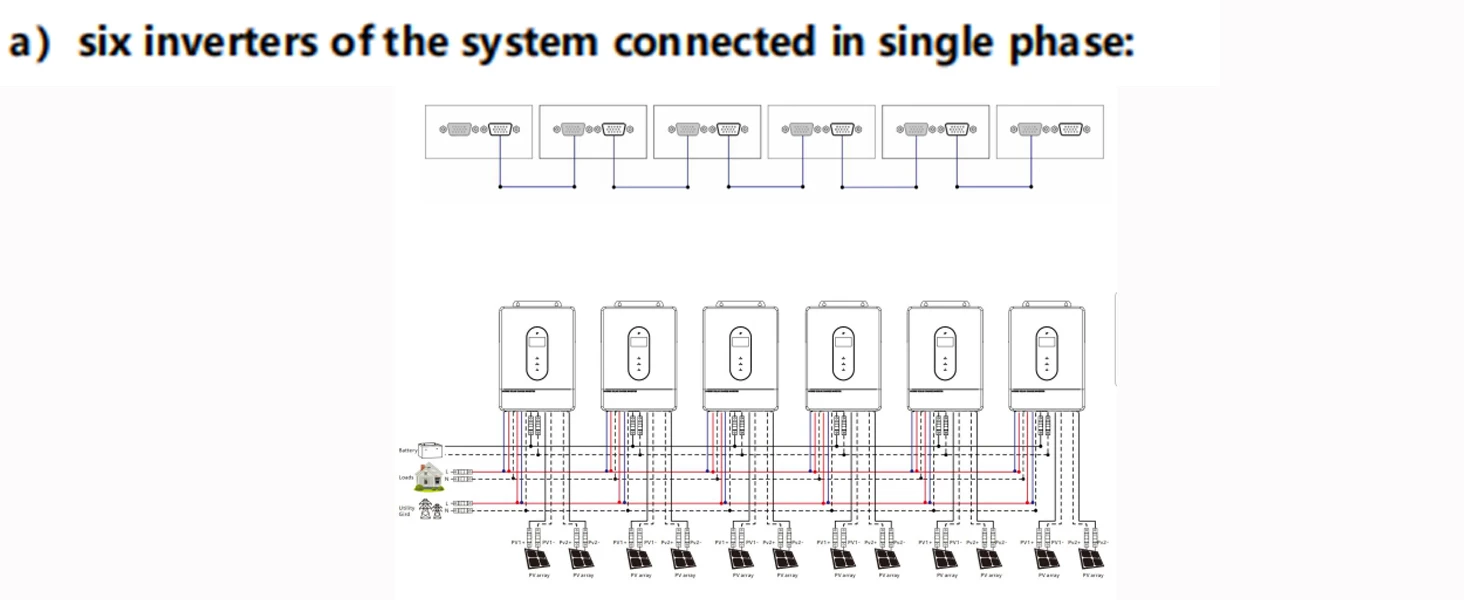

Parallelmode

Permitted
parallel
number

1~6

ACmode

Rated input
voltage

120(L1/N,L2/N)/240Vac(L1/L2)

Input phase
voltage range

(85Vac~140Vac)±2%

Frequency

50Hz/60Hz(Auto detection)

Frequency
Range

47±0.3Hz~55±0.3Hz(50Hz);
57±0.3Hz~65±0.3Hz(60Hz);

Overload/
short circuit
protection

Circuit breaker

Efficiency

>95%

Conversion
time (bypass
and inverter)

10ms(typical)

ACreverse
protection

Yes

Maximum
bypass phase
overload
current

2pole,60A/60A(L1/L2)

Inverter mode

Output
voltage
waveform

Pure sine wave

Rated output
power (VA)

Split phase:12000

Single phase:7200
(limited by the wiring terminals)

Rated output
power (W)

Split phase:12000

Single phase:7200
(limited by the wiring terminals)

Power factor

1

Rated output
voltage(Vac)

120Vac(L1/N,L2/N)/240Vac(L1/L2)

Output
voltage error

±5%

Output
frequency
range(Hz)

50Hz±0.3Hz/60Hz±0.3Hz

Maximum
Efficiency

>91%

Overload
protection

(105%<load<110%)±5%:report error and turn off the output after 5 minutes;
(110%<load<125%)±5%:report error and turn off the output after 10 seconds;
Load>125%±5%:report error and turn off the output after 5 seconds;

Peak power

Split phase:18000VA

Single phase:18000VA

Loaded motor
capability

6HP

Output short
circuit
protection

Can protect,after continuous short circuit for 1 second

Bypass circuit
breaker phase
specification

2pole,63A/63A(L1/L2)

Rated battery
input voltage

51.2V(Minimum starting voltage 44V)

Battery
voltage range

40.0Vdc~58.6Vdc±0.6Vdc(Under voltage alarm/shutdown voltage/over voltage
alarm /over voltage recovery...settable on LCD screen)

Power saving
mode
self-consumpt
ion

Load per phase is null or less than 25W enter power-saving mode

AC charging

Battery type

Lead acid or lithium battery

Maximum charge current(can be set)

160A

Charge current error

±5Adc

Charge voltage range

40-58.6Vdc

Short circuit protection

Circuit breaker and blown fuse

Circuit breaker phase specifications

2pole,60A/60A(L1/L2)

PV charging

Numberof MPPT groups

2

MaximumPV open circuit voltage

500Vdc

PV operating voltage range

90Vdc~485Vdc

MPPT voltage range

90Vdc~450Vdc

Battery voltage range

40-58.6Vdc

Maximum PV input power

9000W+9000W

Maximum PV input current

27A+27A

PV charge current(can be set)

250A

Charging short circuit
protection

Blown fuse

Wiring protection

Reverse polarity protection

Hybrid charging Max charger current specifications (AC charger+PV charger)

Max charger
current(can be
set)

0-250A

Certified specifications

Certification

UL1741/CSA C22.2#107.1

EMC certification level

FCC part15,CLASS B

Operating temperature
range

-10℃ to 55°℃(>45℃ derating)

Storage temperature
range

-25℃~60℃

Humidity range

5%to 95%(Conformal coating protection)

Noise

≤60dB

Heat dissipation

Forced air cooling,variable speed of fan

Communication interface

USB/RS485(/WiFi/GPRS)/Dry node control

Size(L*W*D)

620mm*450mm*132mm

Weight (kg)

23.8

How to Connect It?
