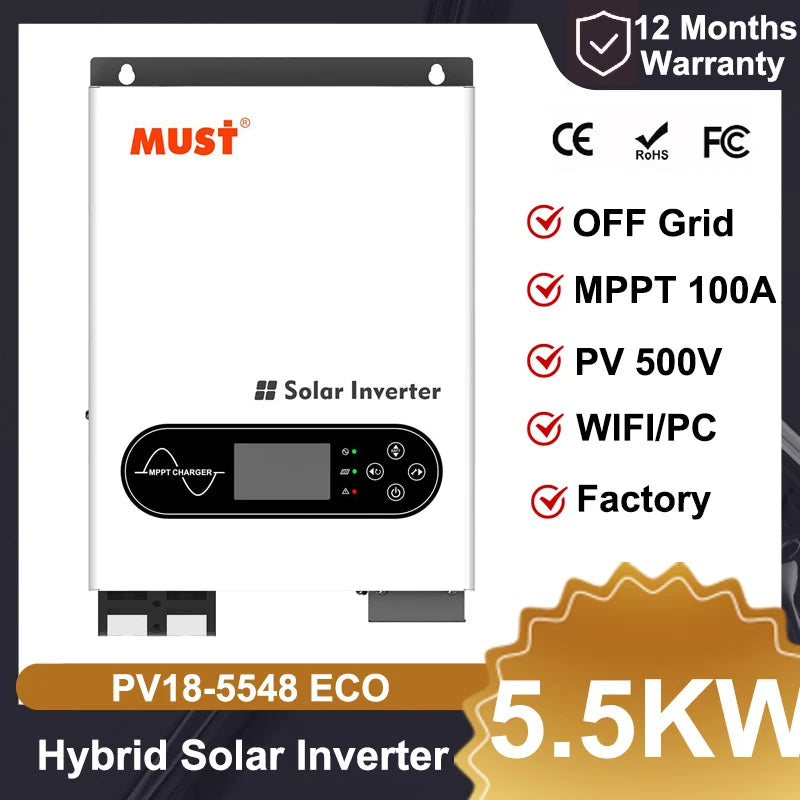

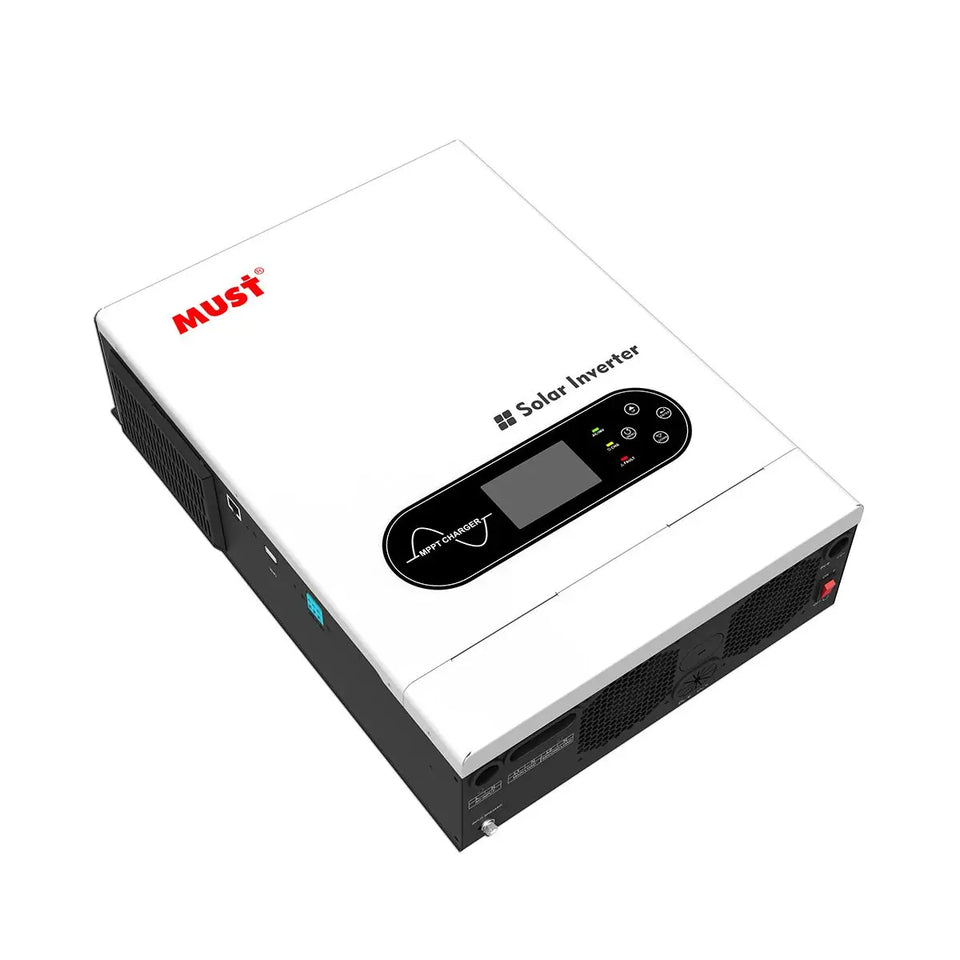

MUST PV1800 ECO 2KW 12V 3KW 24V 5.5KW 48V Home Hybrid Solar Inverter MPPT 100A Max PV 450V Double Output Off Grid Solar System
Empireum WDWM
Regular price
$2,448.99
$1,116.95
54% OFF
PV1800 ECO Series (3.5-5.5KW)
High Frequency Off Grid Solar Inverter 3.5-5.5KW | PV 450| Dual output | DC 24V,48V

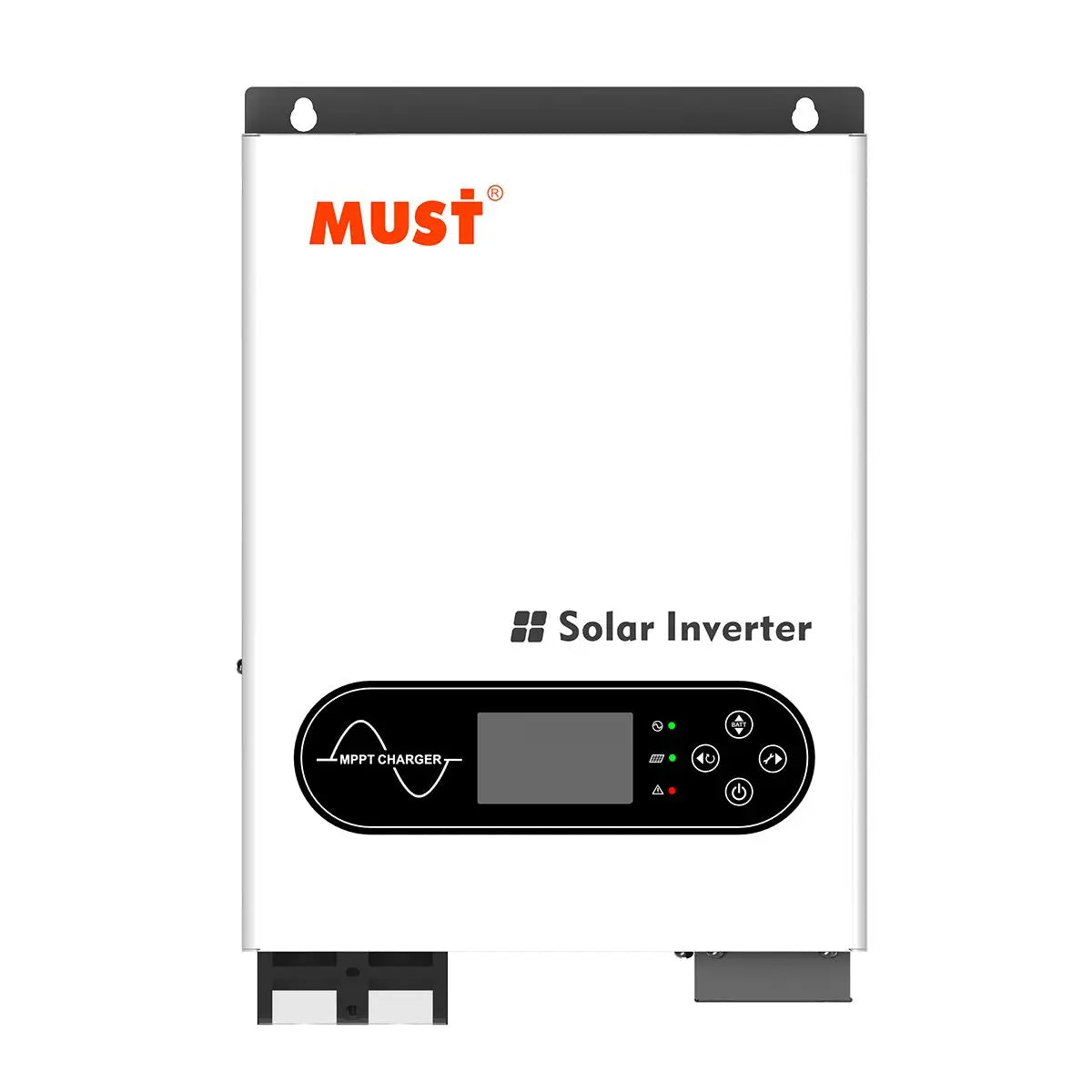

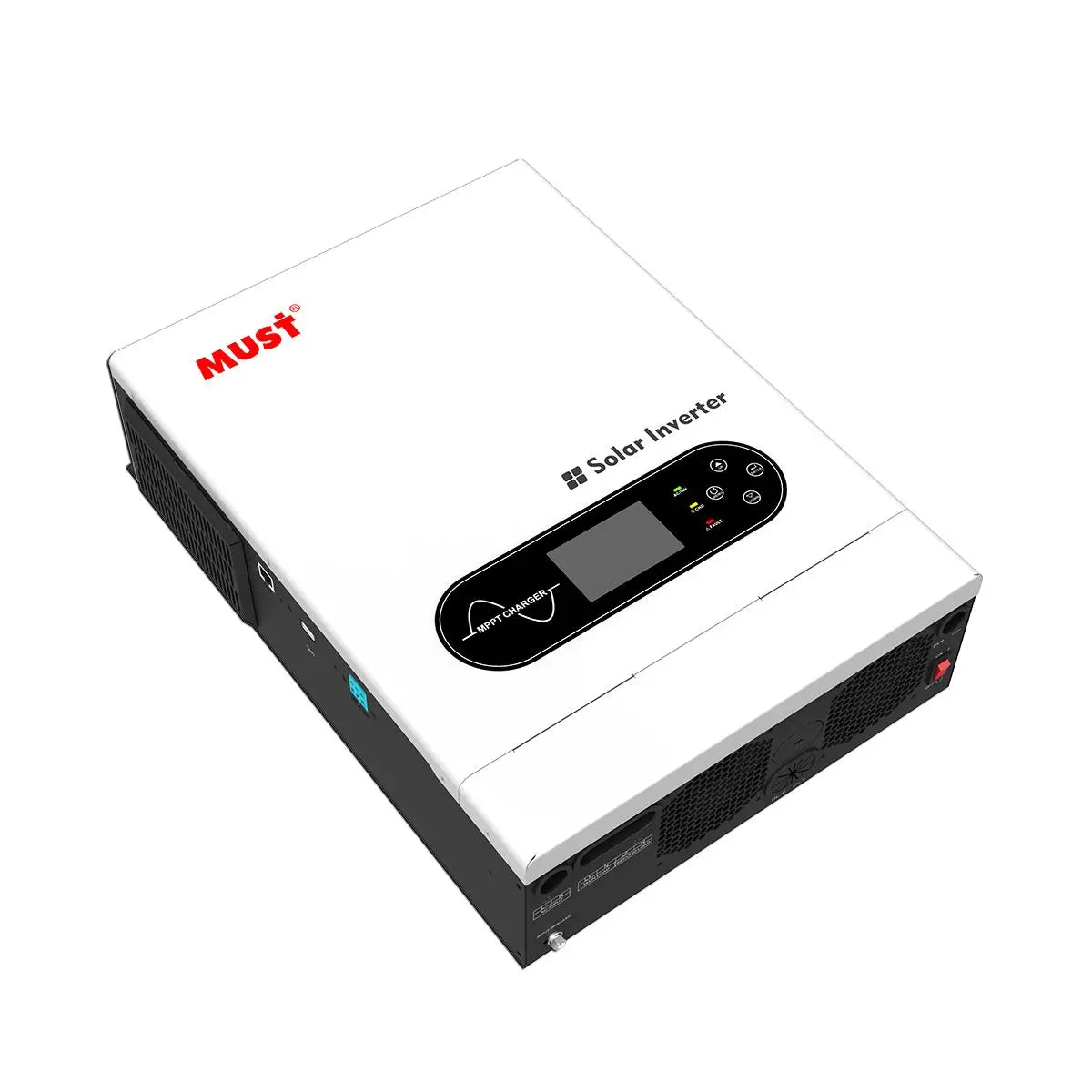

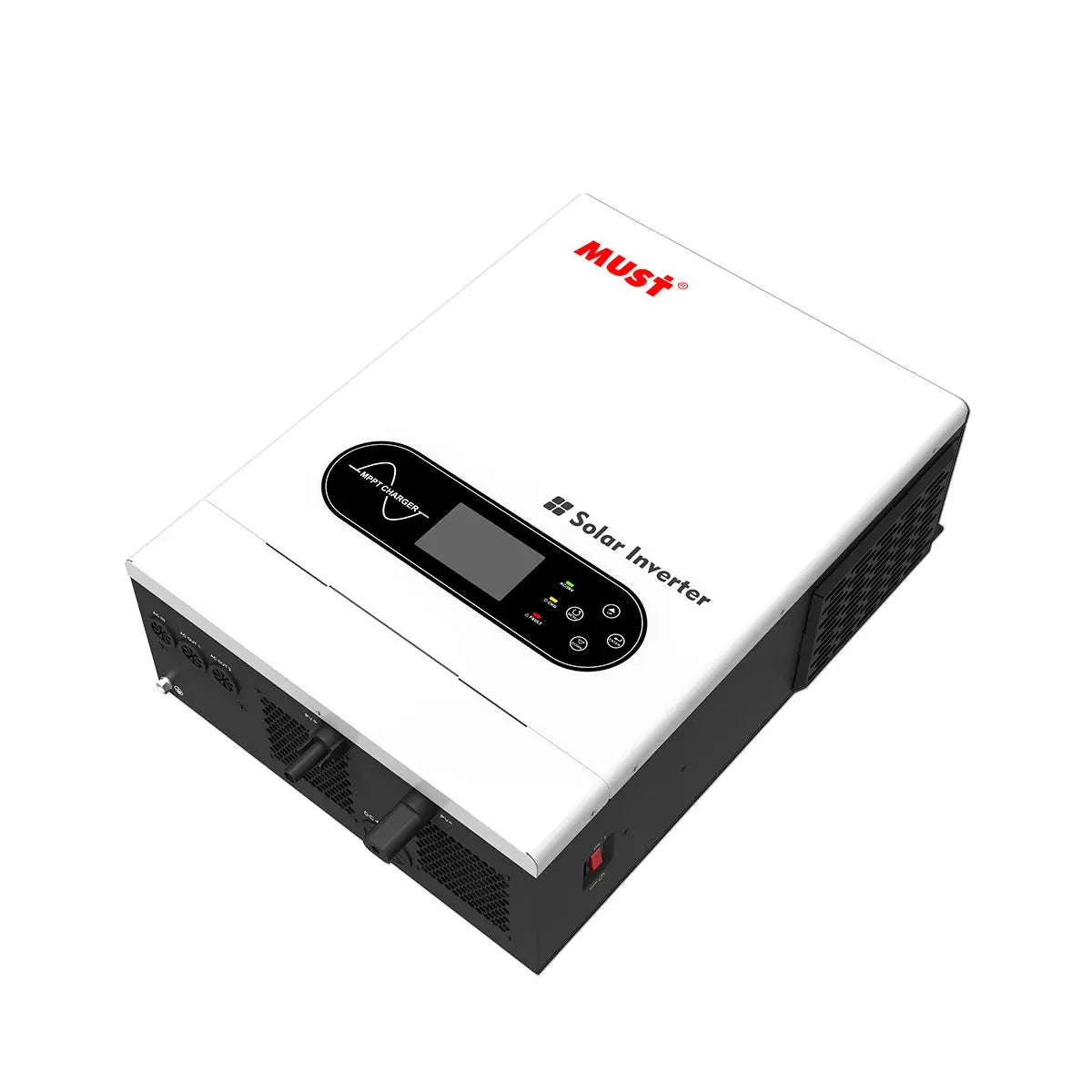

PV1800 ECO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 ECO Series can run without battery.
The Maximum PV input voltage can reach 450V, which can help customers make full use of solar energy.
Fearture
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Wide PV input voltage range
■ Can provide the power to the load without battery

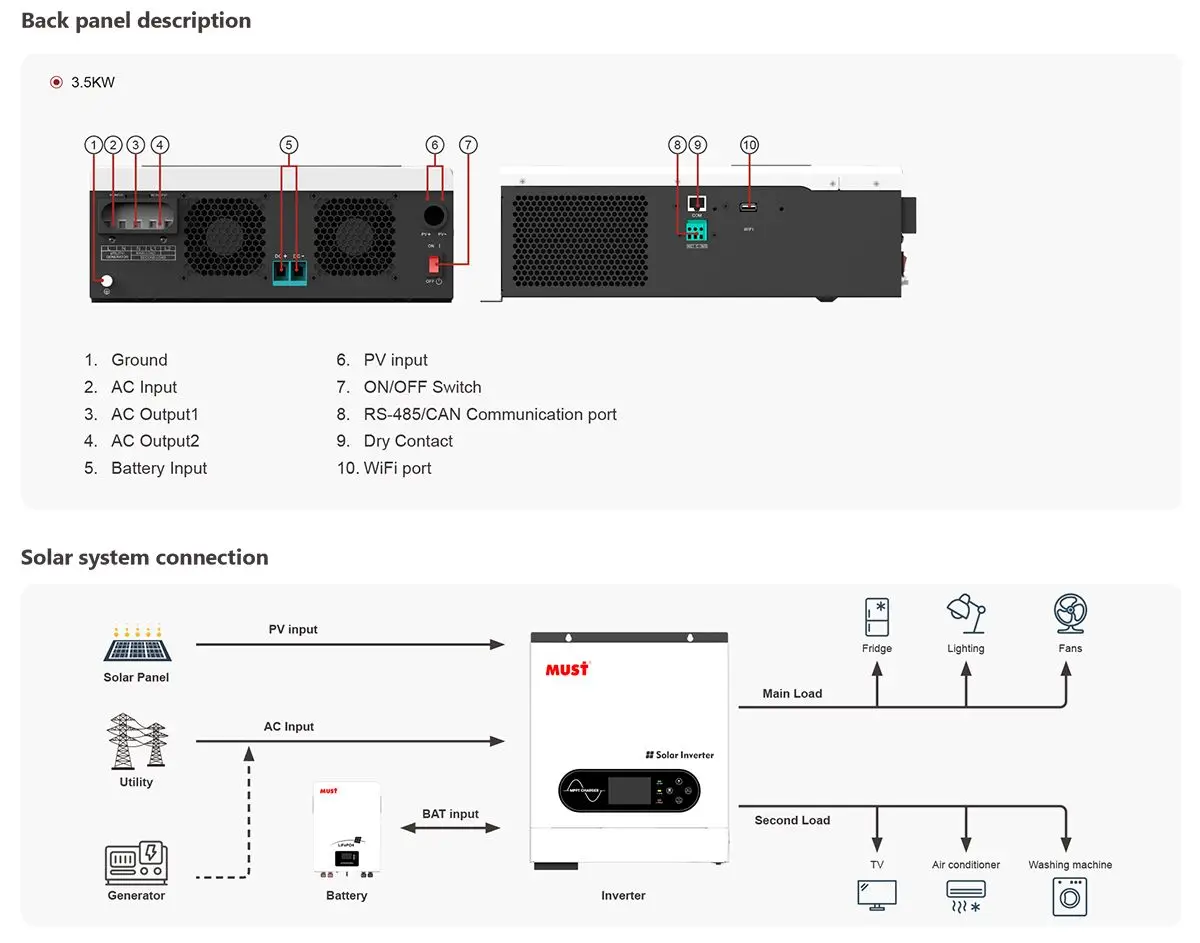

■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support RS485,CAN monitoring function
■ Dual outputs for smart load management
■ Can communicate with lithium batteries (CAN port)
MODEL |
PV18-3524 ECO |
PV18-5548 ECO |
Default Battery System Voltage |
24VDC |
48VDC |
INVERTER OUTPUT | ||
Rated Power |
3500VA/3500W |
5500VA/5500W |
Output Channel |
Dual |
Dual |
Surge Power |
7000W |
11000W |
Waveform |
Pure sine wave |
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5%(Setting) |
|
Inverter Efficiency(Peak) |
>90% |
|
Transfer Time |
Typical < 10ms , 20ms max |
|
AC INPUT | ||
Voltage |
230VAC |
|
Selectable Voltage Range |
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) |
|
Frequency Range |
50Hz / 60Hz (Auto sensing) |
|
BATTERY | ||
Normal voltage |
24VDC |
48VDC |
Floating Charge Voltage |
27.4VDC |
54.8VDC |
Overcharge Protection |
30VDC |
60VDC |
SOLAR CHARGER & AC CHARGER | ||
Maximum PV Input Voltage |
450VDC |
450VDC |

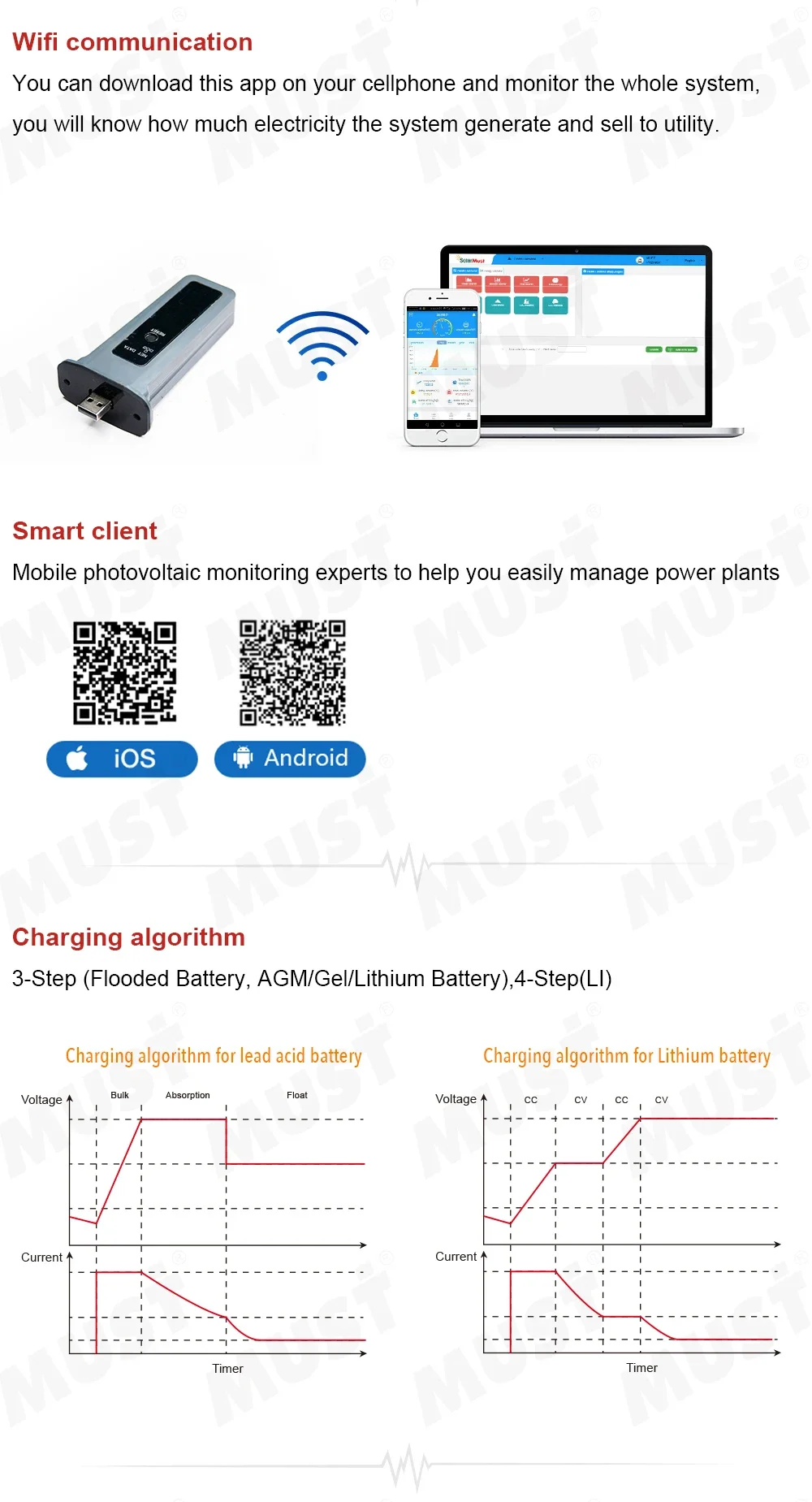

Charging Algorithm |
3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) |
|
Maximum PV Array Power |
4000W |
6000W |
PV Array MPPT Voltage Range(Typ.) |
60~360VDC |
60~360VDC |
PV maximum input current |
18A |
28A |
Maximum Solar Charge Current |
100A |
100A |
Maximum AC Charge Current |
60A |
100A |
Maximum Charge Current |
100A |
100A |
MECHANICAL SPECIFICATIONS | ||
Machine Dimension (W*H*D)(mm) |
318*367*122.5 |
318*454*122.5 |
Package Dimension (W*H*D)(mm) |
446*410*200 |
544.5*410*210 |
N.W (kg) |
7.3 |
9.0 |
G.W (kg) |
8.3 |
10.5 |
OTHER | ||
Humidity |
5% to 95% Relativ Humidity (Non-condensing) |
|
Operating Temperature |
0°C~50°C |
|
Storage Temperature |
-15°C -60°C |
|
Warranty |
2years |
|
CERTIFICATION & STANDARDS | ||
CE | ||
MODEL |
PV18-2012 ECO |
Default Battery System Voltage |
12VDC |
INVERTER OUTPUT | |
Rated Power |
2000VA/2000W |
Output Channel |
Dual |
Surge Power |
4000W |
Waveform |
Pure sine wave |
AC Voltage Regulation (Batt.Mode) |
230VAC±5%(Setting) |
Inverter Efficiency(Peak) |
>90% |
Transfer Time |
Typical < 10ms , 20ms max |
AC INPUT | |
Voltage |
230VAC |
Selectable Voltage Range |
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) |
Frequency Range |
50Hz / 60Hz (Auto sensing) |
BATTERY | |
Normal voltage |
12V |
Floating Charge Voltage |
13.7VDC |
Overcharge Protection |
15VDC |
SOLAR CHARGER & AC CHARGER | |
Maximum PV Input Voltage |
400VDC |
Charging Algorithm |
3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) |
Maximum PV Array Power |
2000W |
PV Array MPPT Voltage Range(Typ.) |
30~320VDC |
PV maximum input current |
16A |
Maximum Solar Charge Current |
80A |
Maximum AC Charge Current |
80A |
Maximum Charge Current |
80A |
MECHANICAL SPECIFICATIONS | |
Machine Dimension (W*H*D)(mm) |
290*367*111 |
Package Dimension (W*H*D)(mm) |
446*394*187 |
N.W (kg) |
6.4 |
G.W (kg) |
7.4 |
OTHER | |
Humidity |
5% to 95% Relativ Humidity (Non-condensing) |
Operating Temperature |
0°C~50°C |
Storage Temperature |
-15°C -60°C |
Warranty |
2years |
CERTIFICATION & STANDARDS | |
CE | |
FAQ
Q: Shipping Policy
A: 1. Shipping from China: Parcel sent within two working days
Standard logistics: delivery time: 15-40 days
Fast logistics (DHL/FedEx/UPS): delivery time: 7-10 days
2. Shipping from Polish warehouse: parcels sent within one working day
Delivery time: 3-5 days
Q：Warranty policy
A：The warranty period of each inverter is one year, effective from the time you receive the goods, within one year of non-human factors of damage, engineers will diagnose for you free of charge to determine the problem and provide repair solutions, free accessories within the warranty period
Q：After-sales policy
A：Other problems can be directly online contact us, technical problems can be directly contacted with engineers, 24 hours online to provide you with services
Engineer phone: +86 13318389569, WeChat and WhatsApp with the same number
E-mail: cs-zjs@mustpower.cn
