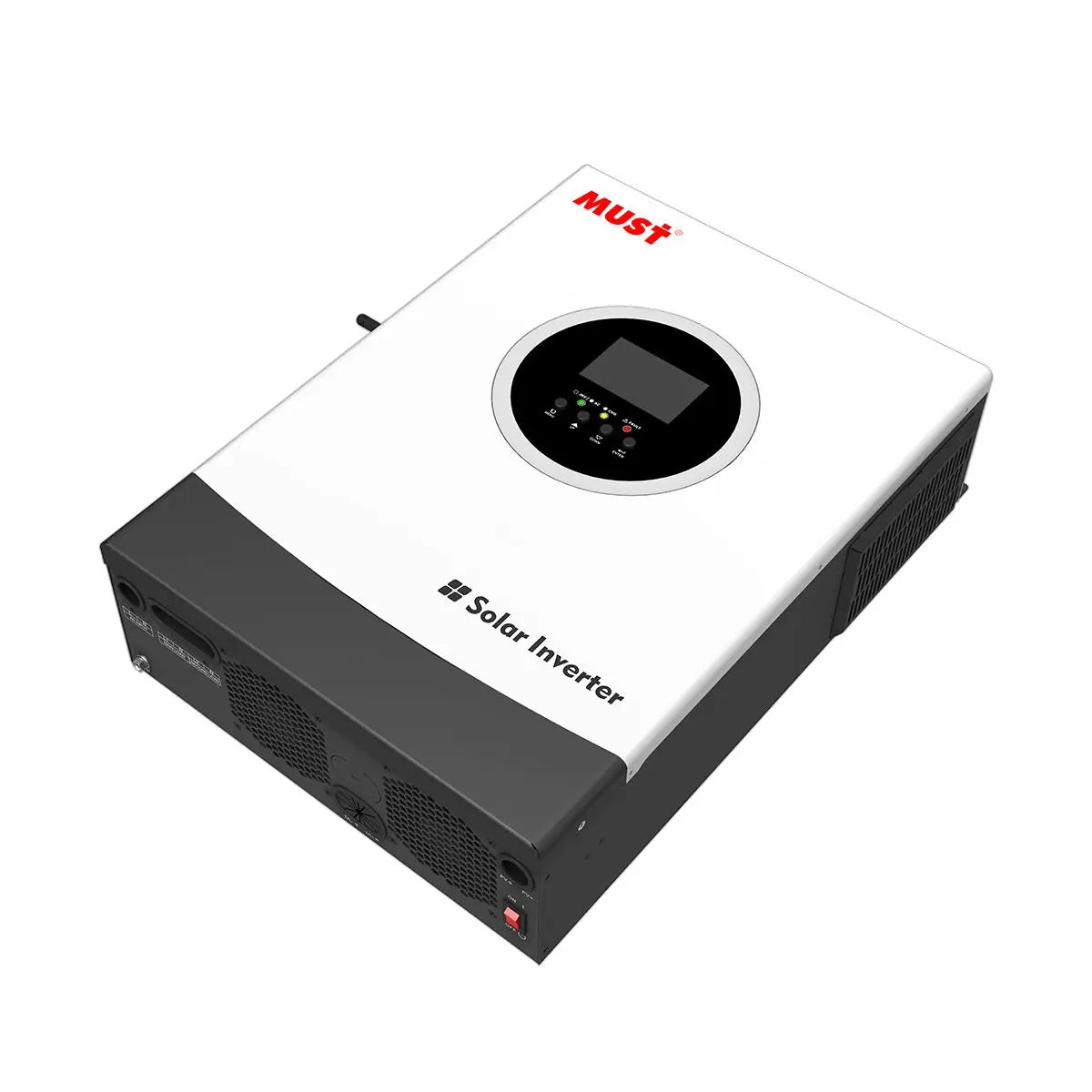

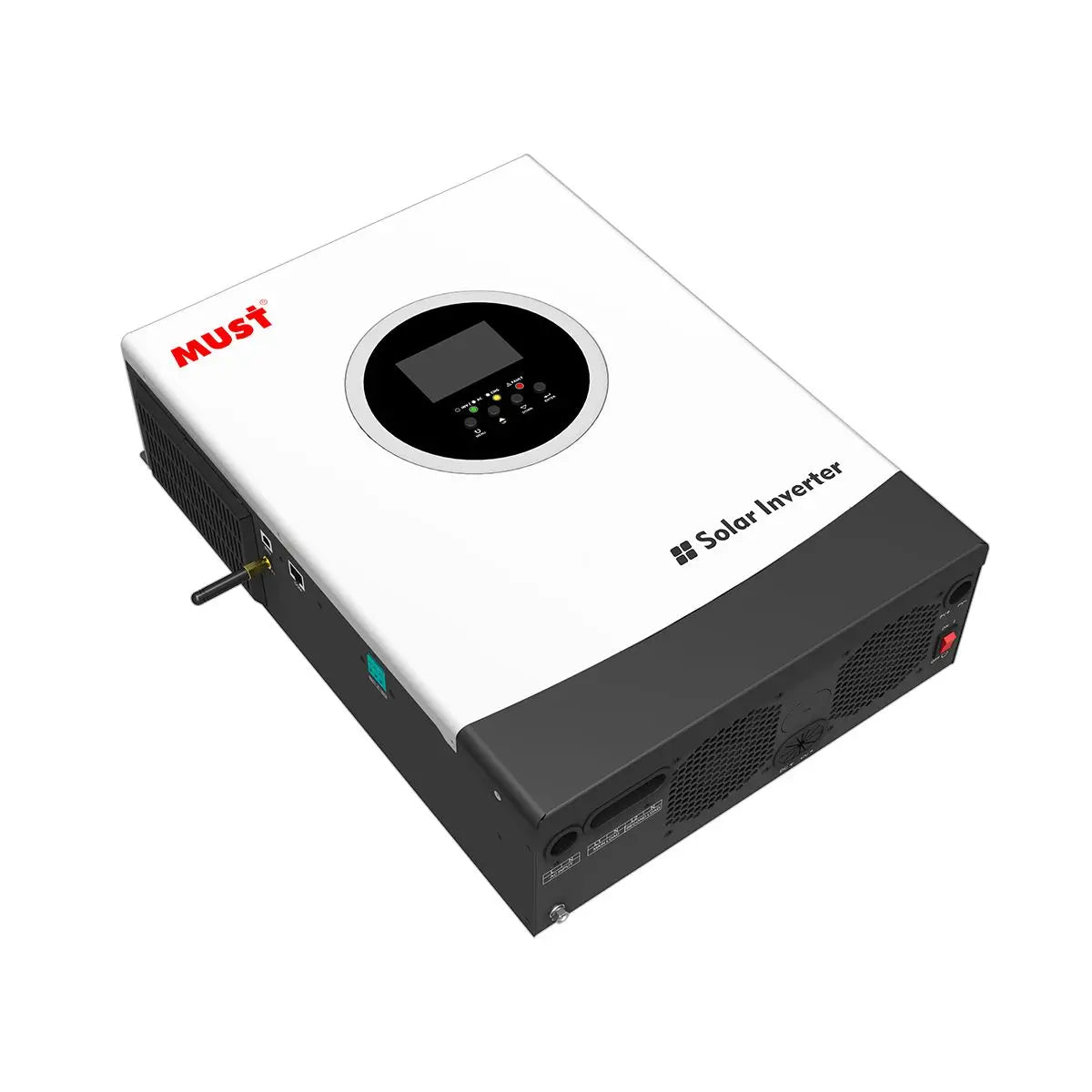

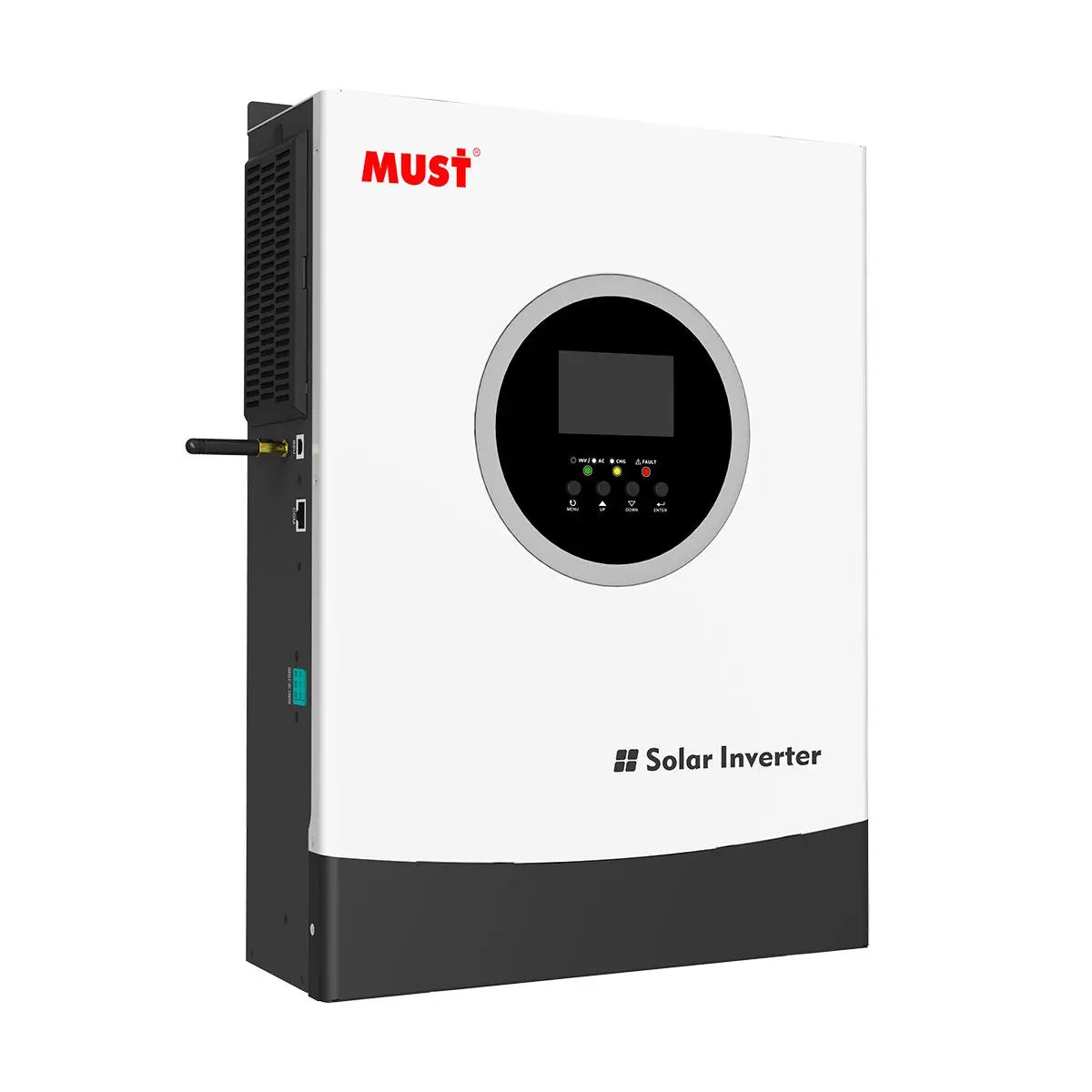

MUST PV1800 Prem 3KW 24V 6.2KW 48V Home MPPT Hybrid Solar Inverter PV 450V MPPT 100A Double Output OFF Grid Solar System WIFI
Empireum WDWM
Regular price
$2,252.99
$1,058.95
53% OFF
PV1800 PREM Series (3KW/3.6/6.2KW)
High Frequency Off Grid Solar Inverter 3KW/3.6/6.2KW | PV 400/450V | Dual output | DC 24V,48V
PV1800 PREM is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PREM Series can run without battery. The Maximum PV array open circuit voltage can reach 400V/450V. which Can help customers make full use of solar energy.
Feature
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support USB, RS485, CAN monitoring function

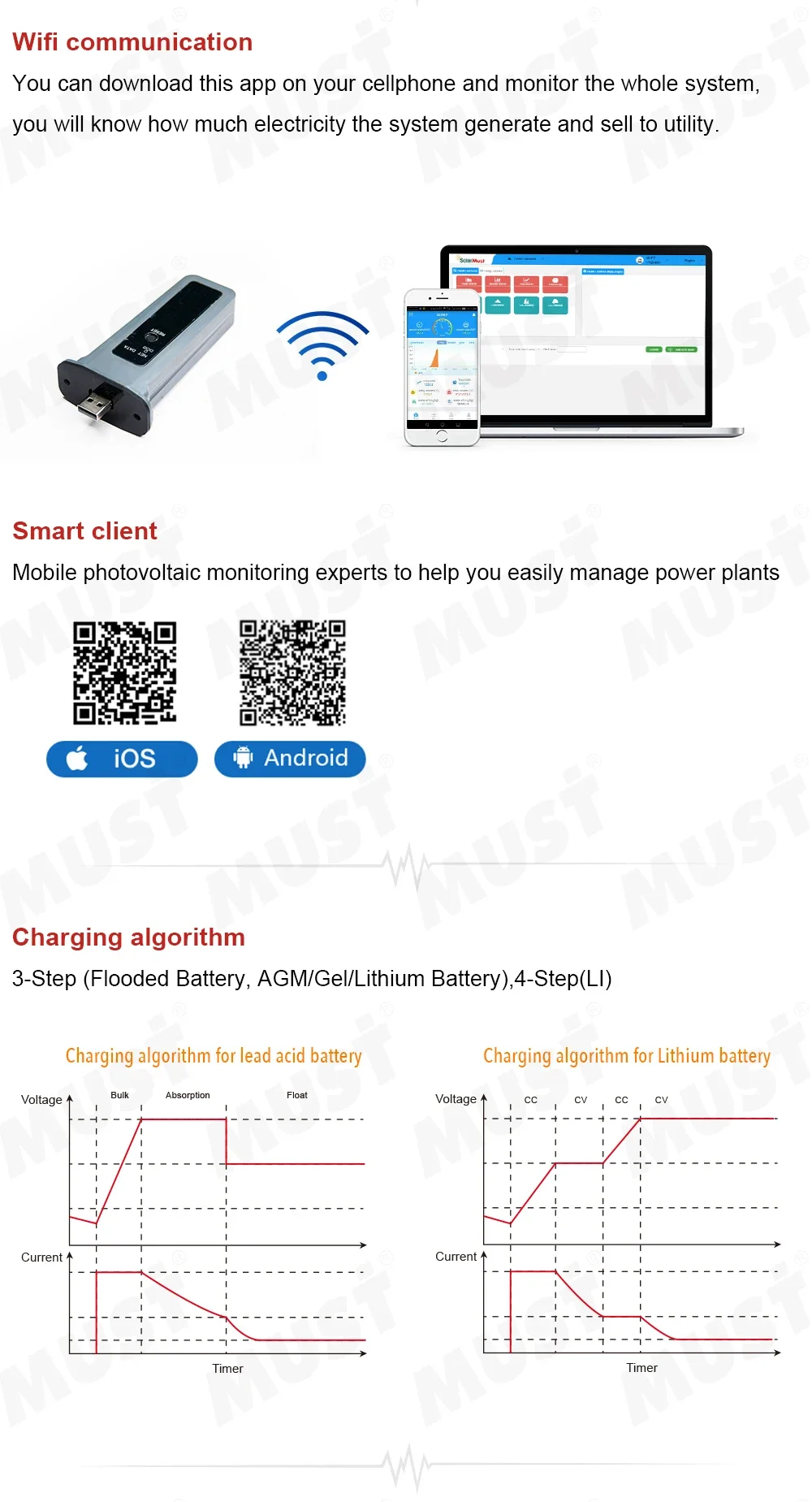

■ WIFI remote monitoring (Built in wifi module and antenna)
■ PV/ AC activation function
■ BMS communication function (CAN Port)

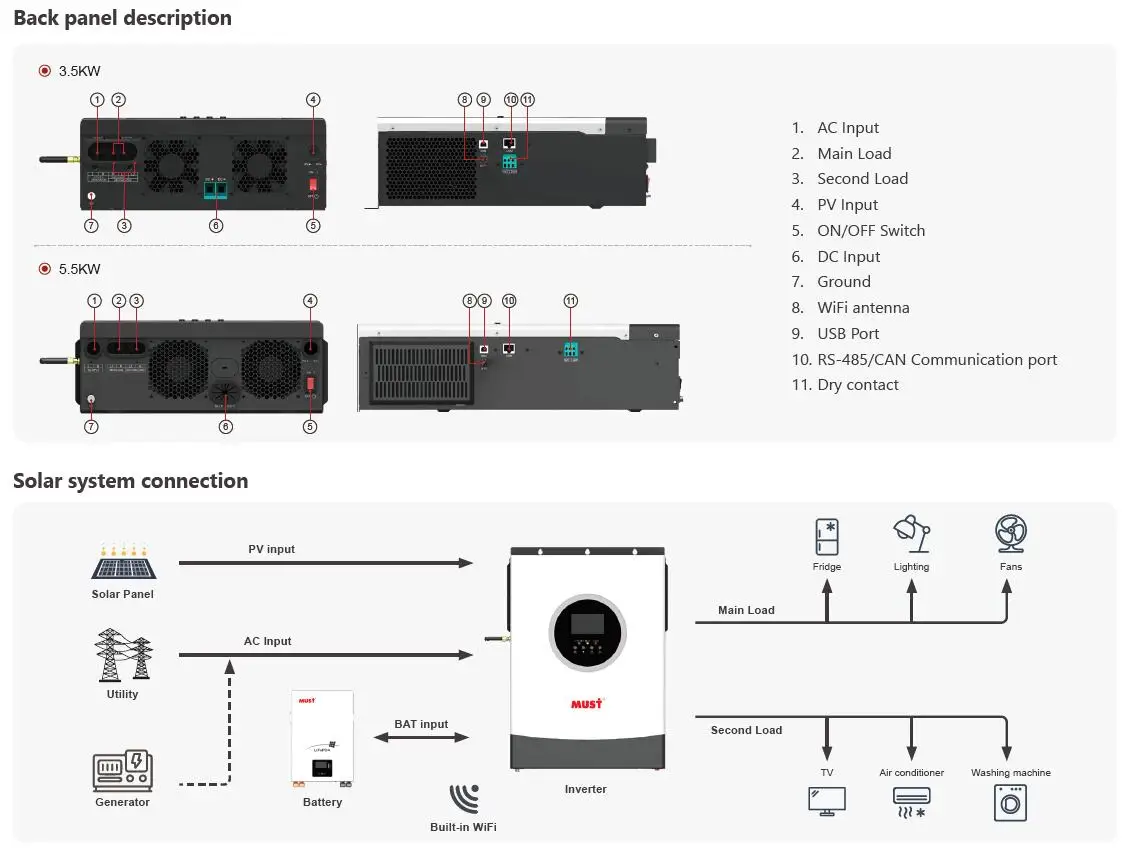

■ Dual output for smart load management
MODEL |
PV18-3624 PREM |
PV18-6248 PREM |
Nominal Battery System Voltage |
24VDC |
48VDC |
INVERTER OUTPUT | ||
Rated Power (Main+Second Load) |
3600VA/3600W |
6200VA/6200W |
Surge Power |
7200W |
12400W |
Waveform |
Pure sine wave |
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5%(Setting) |
|
Inverter Efficiency(Peak) |
90~93% |
|
Transfer Time |
10ms (UPS / VDE4105) / 20ms (APL) |
|
AC INPUT | ||
Voltage |
230VAC±5% |
|
Selectable Voltage Range |
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) |
|
Frequency Range |
50Hz / 60Hz(Auto sensing) |
|
BATTERY | ||
Normal voltage |
24VDC |
48VDC |
Floating Charge Voltage |
27.4VDC |
54.8VDC |
Overcharge Protection |
30VDC |
60VDC |
SOLAR CHARGER &AC CHARGER | ||
Maximum PV Array Open Circuit Voltage |
450VDC |
450VDC |
Maximum PV Input Current |
18A |
28A |
Charging Algorithm |
3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) |
|
Maximum PV Array Power |
4000W |
6000W |
PV Array MPPT Voltage Range(Typ.) |
60~360VDC |
|
Maximum Solar Charge Current |
100A |
|
Maximum AC Charge Current |
60A |
100A |
Maximum Charge Current |
100A |
|
MECHANICAL SPECIFICATIONS | ||
Machine Dimension (W*H*D)(mm) |
318*367*122.5 |
318*454*122.5 |
Package Dimension (W*H*D)(mm) |
459*410*200 |
544.5*410*200 |
N.W (kg) |
7.2 |
9.0 |
G.W (kg) |
8.2 |
10.5 |
OTHER | ||
Humidity |
5% to 95% Relative humidity (Non-condensing) |
|
Operating Temperature |
0°C~50°C |
|
Storage Temperature |
-15°C~60°C |
|
Warranty |
2years |
|
