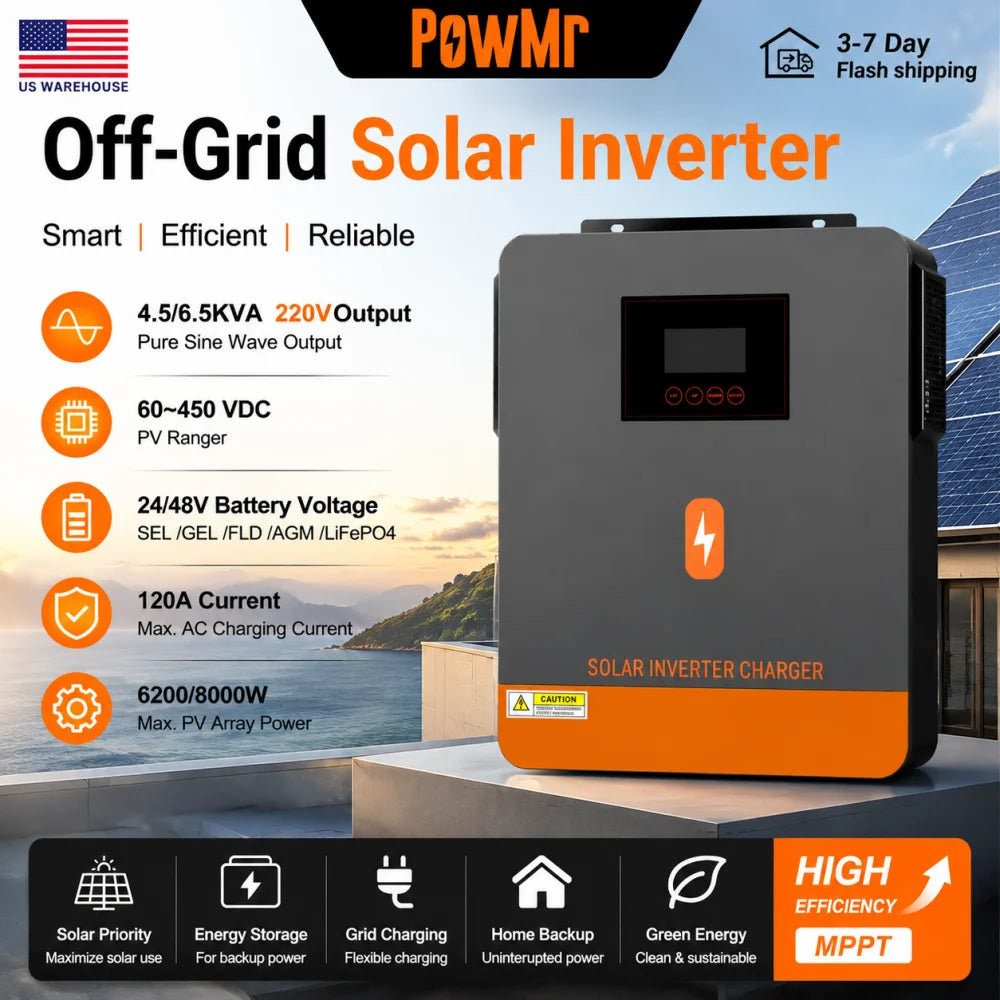

PowMr 4.5VA/6.5VA Off Grid Solar Inverter 24V/48Vdc to 220Vac MPPT 120A Charge Controller BMS Communication Max PV 450V for Home Solar System
Empireum WDWM
Regular price
$1,937.99
$823.95
57% OFF
PowMr 4.5VA/6.5VA Off Grid Solar Inverter 24V/48Vdc to 220Vac MPPT 120A Charge Controller BMS Communication Max PV 450V for Home Solar System
INVERTER MODEL |
POW-HVM4.5K-24V-E |
POW-HVM6.5K-48V-E |
Line Mode Specifications | ||
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
|
Nominal Input Voltage |
230Vac |
|
Max AC Input Voltage |
300Vac |
|
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
|
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
|
Inverter Mode Specifications | ||
Rated Output Power |
4.2KW |
6.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50HZ |
|
Peak Efficiency |
93% |
|
Overload Protection |
3s@≥150% load;5s@101%~150% load |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
No Load Power Consumption |
25W |
50W |
Charge Mode Specifications | ||
Charging Algorithm |
3-Step |
|
AC Charging Current (Max) |
100A |
100A |

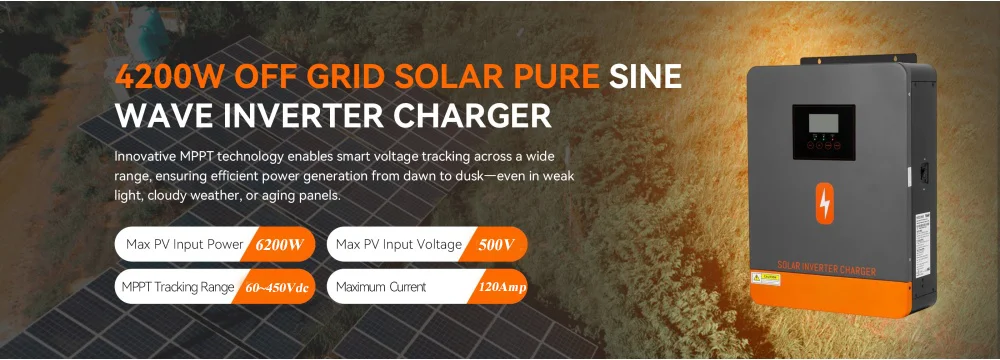

Max. PV Array Power |
6200W |
8000W |
Nominal PV Voltage |
240Vdc |
360Vdc |
PV Array MPPT Voltage Range |
60Vdc~450Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|

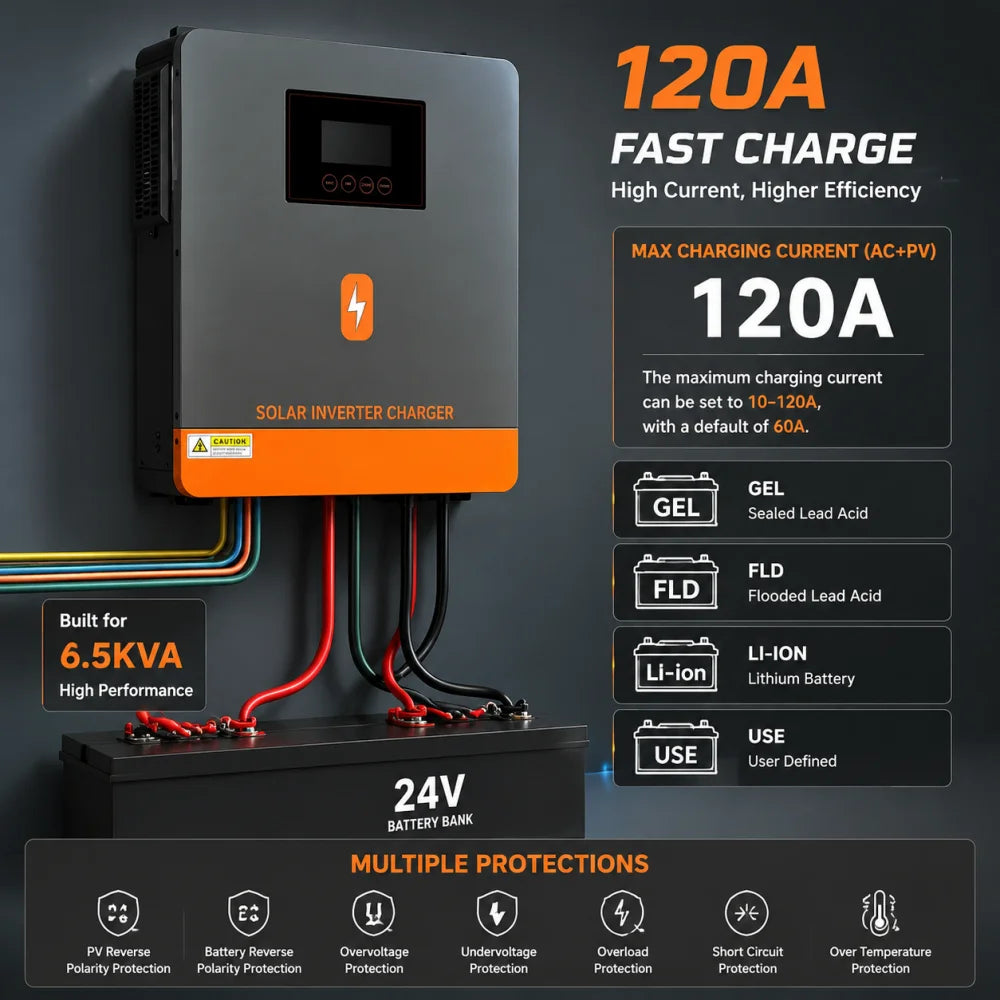

Max Charging Current(AC charger plus solar charger) |
120A |
120A |
Grid-Tie Operation | ||
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195-253VAC |
|
Feed-in Grid Frequency Range |
49-51±1Hz/59-61±1Hz |
|
Nominal Output Current |
18.2A |
26.9A |
Maximum Conversion Efficiency(DC/AC) |
97% |
|
Two Load Output Power | ||
Full Load |
4200W |
6200W |
Maximum Main Load |
4200W |
6200W |
Maximum Second Load Range |
840W~2940W |
1240W~4340W |
Main Load Cut Off Voltage |
26VDC |
52VDC |
Main Load Return Voltage |
27VDC |
54VDC |

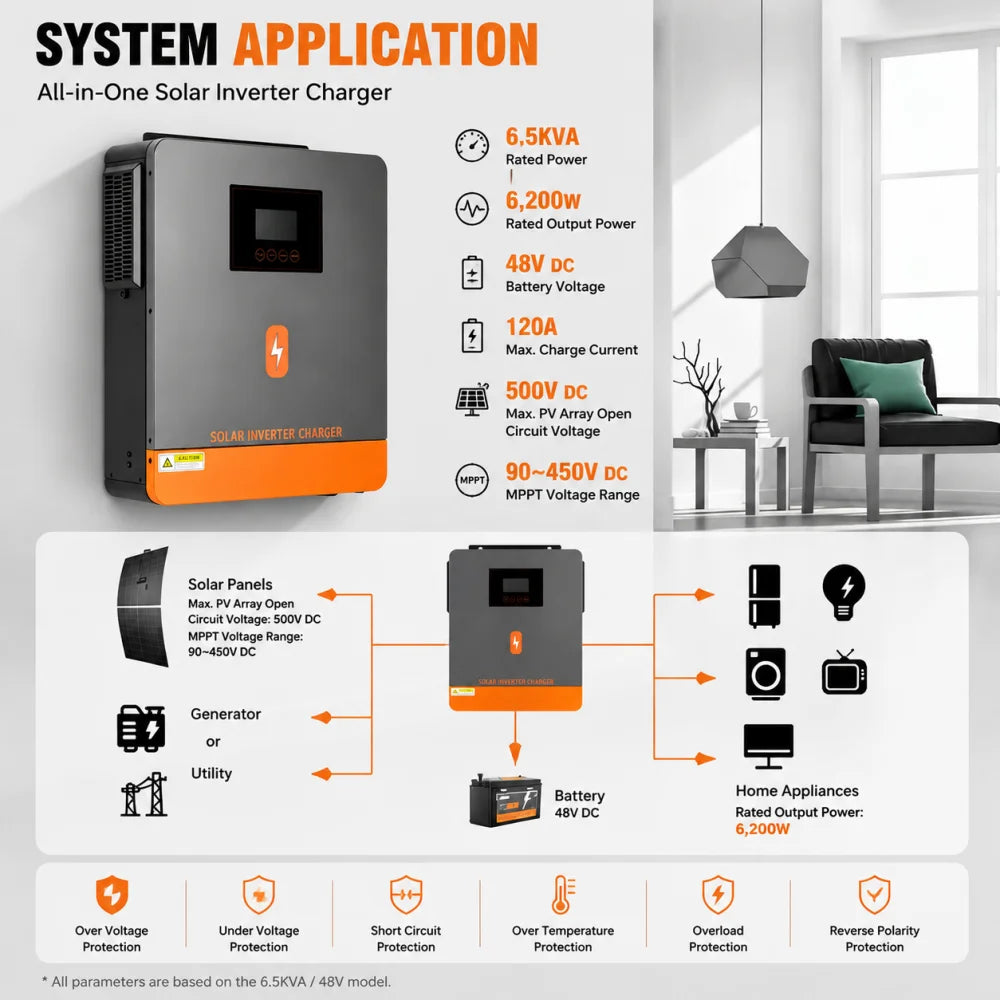

Efficient 4.2kW Pure Sine Wave Solar Inverter effortlessly converts AC 220V to DC 24/48V or vice versa, guaranteeing compatibility with the grid, solar panels and generator. Utilize the LCD setting to configure input voltage range for appliances and fine-tune battery charging current for optimal performance.

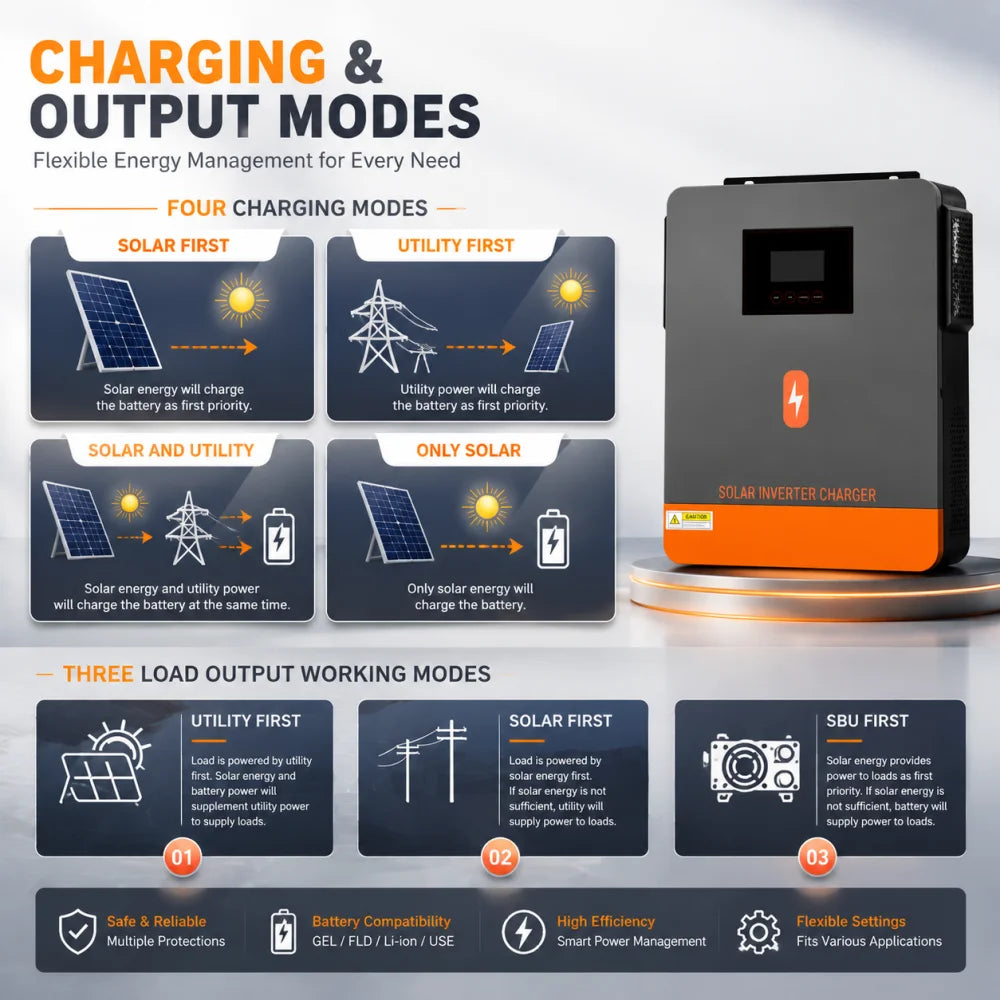

Experience versatility with our Inverter Charger, featuring 3 charging modes (Only Solar, Solar First, or Solar&Utility) and 3 output modes (SUB, SBU and MKS). Customize power delivery based on your power source preference. In Solar Priority Mode, the inverter intelligently switches between utility and battery, maximizing solar energy utilization by setting a specific battery voltage point.

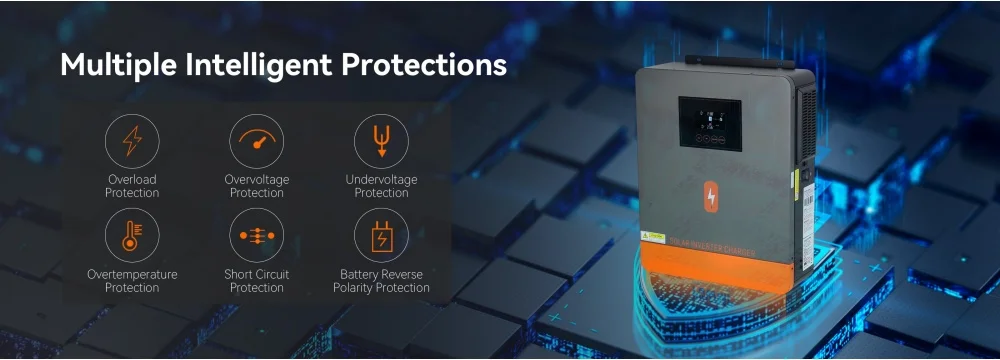

With robust protection features, it auto-restarts during AC power recovery, ensuring uninterrupted operation. Benefit from overload, over-temperature, and short circuit protection, safeguarding your system. The smart battery charger optimizes performance for longer lifespan.
